Description
Create stage borders, wall washes, interesting lighting backdrop designs and pixel-mapped effects with the LCB300 1m LED Bar. Featuring 36 RGBW LEDs, 12 individual control sections, and removable frosted tube covers, it is a practical strip light for adding linear visual elements to your event.
1m LED Bar and Strip Light Hire in Auckland
Add linear lighting to your event production with our 1m LED Bar hire. The LCB300 (manufactured by BeamZ) is a 1-metre-long wash fixture that serves as a standard option for live bands, corporate events, and DJ setups. Whether you need to uplight a drape, create a border along the front edge of a stage, or build chase sequences behind a drum kit, these LED strip lights provide even and consistent coverage.

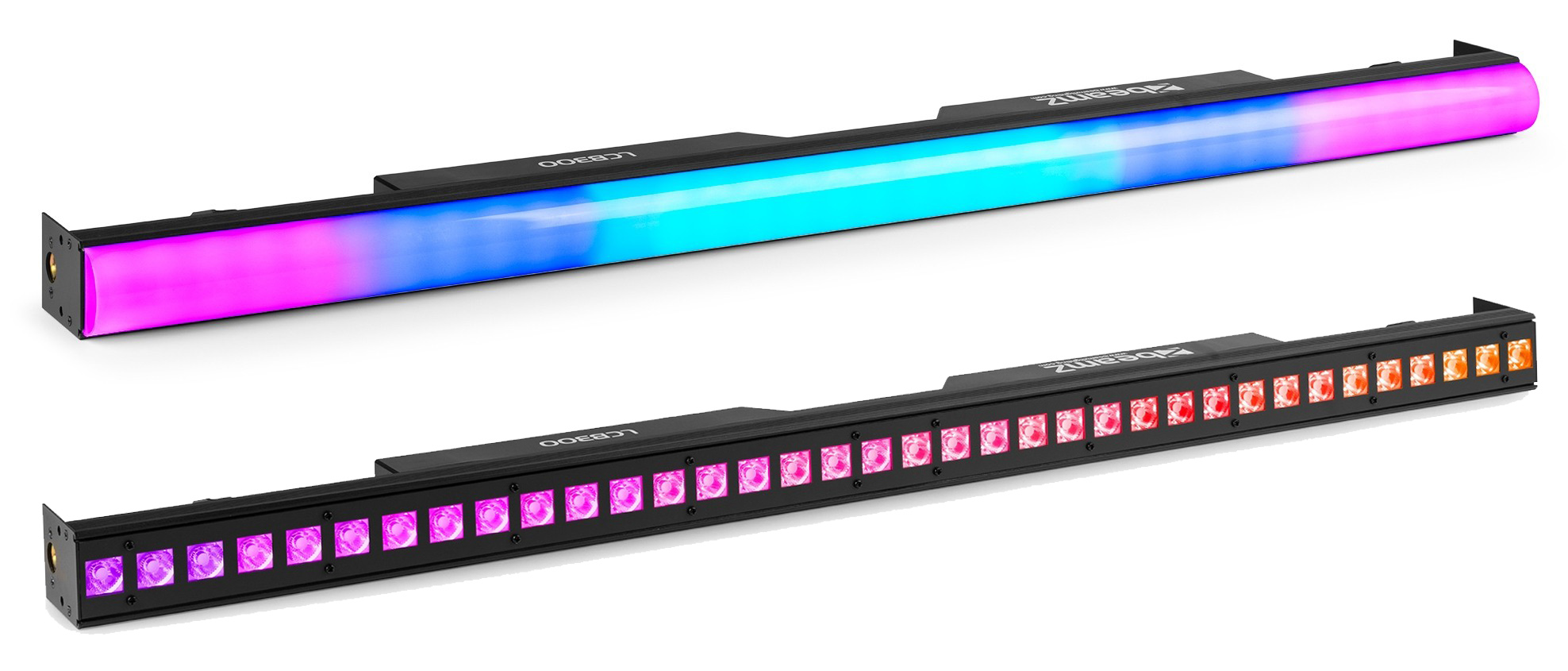

A notable feature of our inventory is that these lights can be used with or without their included frosted half-cylinder tube covers. You can run them bare for a sharp, direct wash effect, or attach the tube covers to diffuse the light, transforming the fixture into a smooth, glowing “neon-style” tube that looks great when facing the audience.
Each bar contains 36x 3W RGBW (Red, Green, Blue, White) LEDs for standard colour mixing. Unlike basic LED battens, the LCB300 allows you to divide the 1-metre strip into 12 individually controllable sections. This means you can run pixel-mapped chases and colour gradients across the face of the light.
Inventory Note: We currently stock 8 of these units (available as sets of 4 or the full set of 8). Because they feature powerCON and DMX pass-through connections, you can easily daisy-chain multiple units together to span the width of your stage or venue wall.
Key Features & Benefits:
-

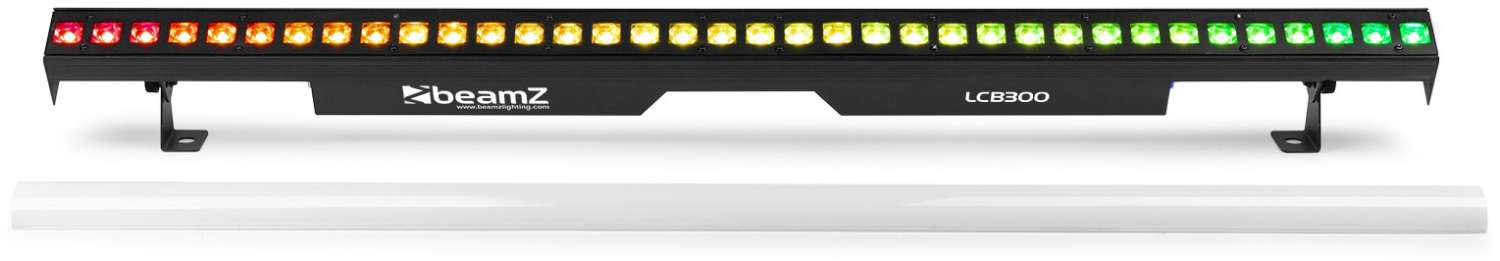

Removable Tube Covers: Fixtures can be used bare for a direct directional wash, or with the included frosted half-cylinder covers for a soft, diffused glowing tube effect.
-
Linear Wash: 36x 3W 4-in-1 LEDs provide bright output suitable for wall washers, stage borders, or cyc lights.
-
RGBW Colour Mixing: Dial in specific corporate brand colours or stage tones using the Red, Green, Blue, and White LEDs.
-
Pixel Control: The bar is divided into 12 separate controllable sections (3 LEDs per section) for chase effects and pixel mapping.
-

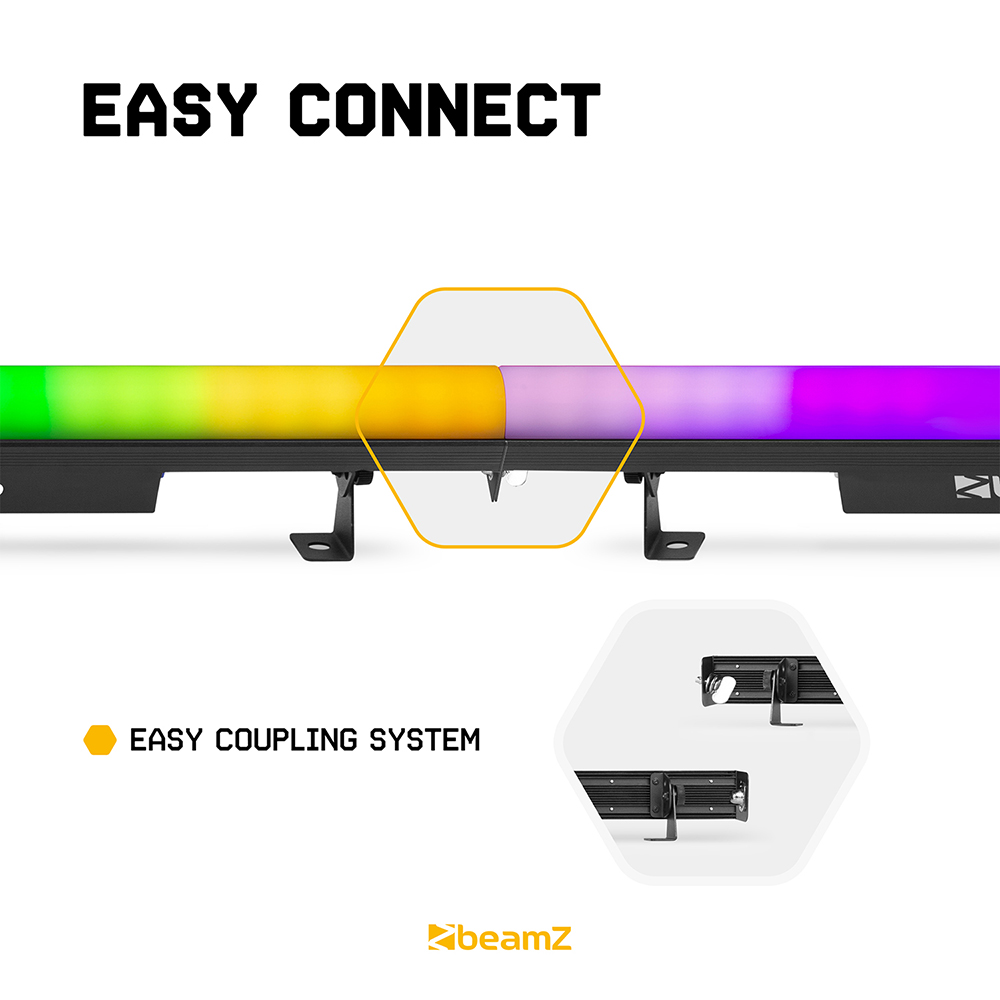

Easy Daisy-Chaining: Features powerCON In/Out and DMX In/Out, allowing you to link multiple LED bars together from a single main power outlet.
-
Built-in Shows: For simpler setups, use the pre-programmed shows, automatic mode, or sound-active mode without needing an external lighting desk.
-
Flexible Mounting: The included brackets allow the fixture to sit flat on the floor for uplighting or be clamped securely to trussing for overhead downlighting.
Why Hire LED Strip Lights from The Rock Factory?
When you choose us for your stage lighting hire in Auckland, you receive gear that is tested and prepped for the demands of live events. Our team addresses every LED bar before it leaves the warehouse. If you hire the full set of 8, we supply the required power link cables and DMX leads to keep your stage setup tidy and efficient.
(Pro Tip: These linear lights are highly effective when paired with moving heads in a haze-filled room. Check out our Antari Fazer hire options here.)
Frequently Hired With These LED Bars:
-
Pipe and Drape Hire (LED bars are an effective way to uplight our black or white drapes)
Technical Specifications Overview:
| Feature | Detail |
| Fixture Type | 1m LED Linear Bar / Strip Light / Wall Washer |
| Light Source | 36 x 3W RGBW (4-in-1) LEDs |
| Pixel Control | 12 individually controllable sections |
| Beam Angle | 2° x 12° (Field Angle: 13° x 22°) |
| Dimming | 0-100% linear electronic dimming |
| Strobe Rate | Adjustable (1-20Hz) |
| Control Modes | DMX512, Auto, Sound Active, Master/Slave |
| DMX Channels | 4, 6, 9, 48, or 52 channel modes |
| Connections | 3-pin or 5-pin XLR In/Out, PowerCON In/Out |
| Weight | Approx. 2.2 kg per bar |
| Dimensions (L x W x H) | 1004 x 55 x 120 mm |
Manufacturer Documentation:
Video of the hire LED Bars in action:
Here is a YouTube video from Tronios BV showing the 1m led strip lights / LED Bars in a lighting setup
Contact Us
Ready to Book Your Lighting?
Contact us today for current 1m LED Bar hire rates. We own 8 of these fixtures, ready for your next stage setup. Available for pickup from our Auckland warehouse, or ask us about delivery and technical setup.
-
