Description
Maximise your wireless system’s range and reliability with the industry-standard PWS Helical Antenna.
Product Description

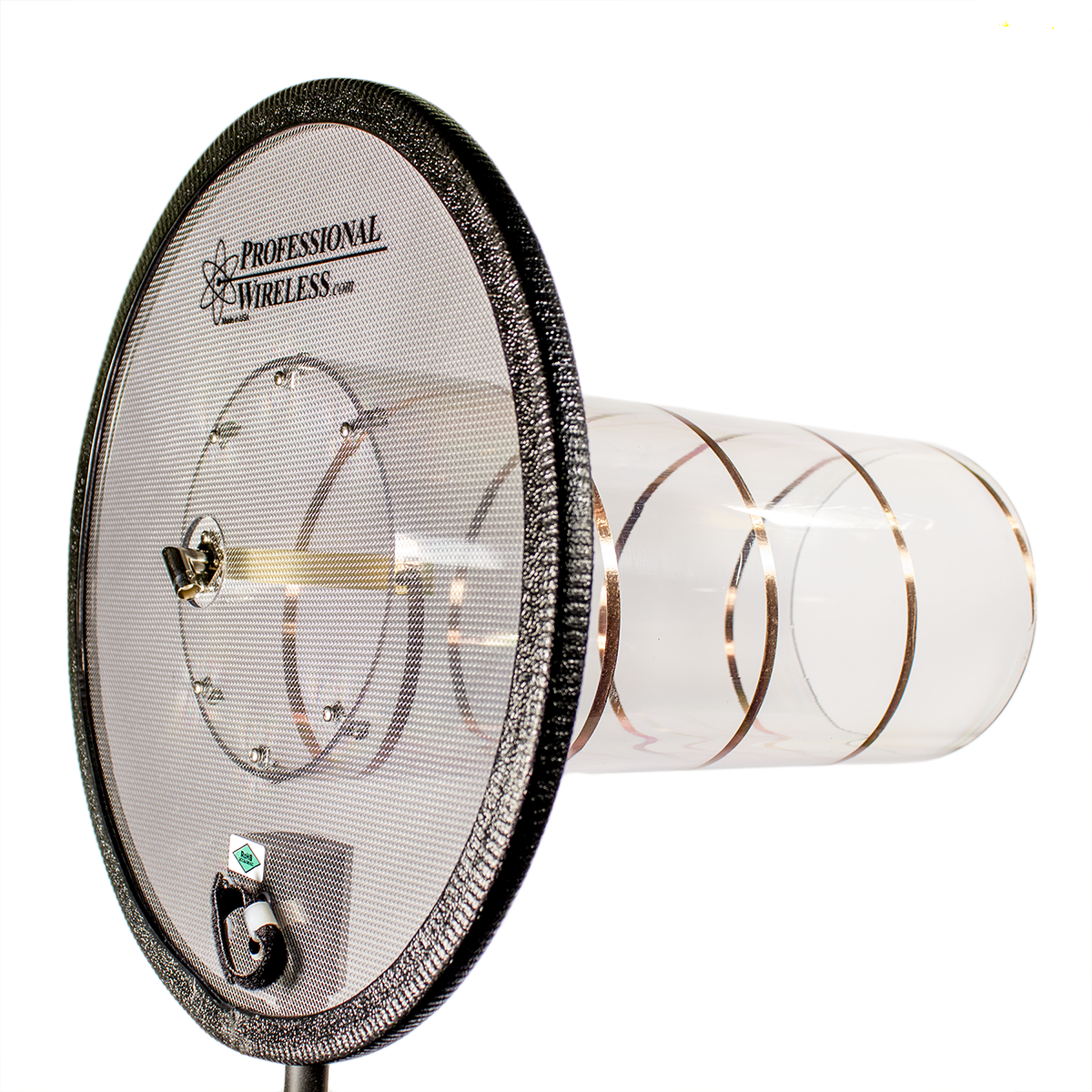

For professional audio productions and events that require numerous wireless microphone or IEM channels, the standard whip antenna won’t always suffice. Our Helical Antenna hire provides the industry-standard Professional Wireless Systems (PWS) S8089, a crucial upgrade for critical wireless performance.
The S8089 Helical Antenna uses circular polarisation, a key feature that provides a much more stable signal than linear antennas (like whips or paddles). This means the signal won’t drop out when transmitters (like beltpacks or handheld mics) move or change orientation on stage. This stability, combined with its high gain, makes it the ultimate solution for large stages, complex RF environments, or events where maximum range and flawless performance are non-negotiable.
This antenna is compatible with our entire range of Shure Wireless Systems and Sennheiser Wireless Systems, providing rock-solid reception for both. It pairs perfectly with our RF Antenna Splitter or Antenna Combiner for managing large multi-channel systems.
Key Features & Benefits
- Circular Polarization: Eliminates signal dropouts caused by transmitter orientation (the “fade” effect when a performer turns away), ensuring consistent coverage.
- High Gain (9 dBiC): Provides significant boosting of the signal, vastly increasing the usable operating range compared to standard antennas.
- Wide Bandwidth: Covers the standard UHF frequency range, making it compatible with most professional wireless systems and easy to coordinate.
- Increased Stability: Ideal for multi-channel applications, mitigating multi-path interference and maximising receiver sensitivity.
- Rugged Construction: Built to withstand the demands of touring and large outdoor events.
Why Hire a Helical Antenna from Us?
When you choose The Rock Factory for Helical Antenna hire, you are securing a professional-grade, essential piece of RF gear for high-stakes events. We meticulously test and maintain our wireless inventory to ensure optimum performance. Renting the PWS S8089 is a cost-effective way to achieve the highest level of wireless reliability without the large capital investment. We are your trusted partner for wireless accessory rental and professional live sound solutions.
Technical Specifications Overview (PWS S8089)
| Feature | Detail |
|---|---|
| Frequency Range | 470 – 900 MHz (UHF Wideband) |
| Polarization | Circular |
| Gain | 9 dBiC (Nominal) |
| Beamwidth | 60° (Horizontal/Vertical) |
| Impedance | 50 Ω (Nominal) |
| Connector | BNC Female |
| Dimensions | 12.5″ x 12.5″ x 13.5″ (317.5 x 317.5 x 342.9 mm) |
| Weight | 1.8 lbs (0.82 kg) |
Manufacturer Resources
For detailed technical specifications and user guides on the PWS S8089:
- PWS S8089 Datasheet (PDF): S8089 Helical Antenna Spec Sheet
