Description
Hire DLIVE mixer and experience digital mixing as it should be with the dLive C3500 digital mixer control surface, offering intuitive control, massive processing power, and a flexible workflow for demanding live sound environments.
Product Description

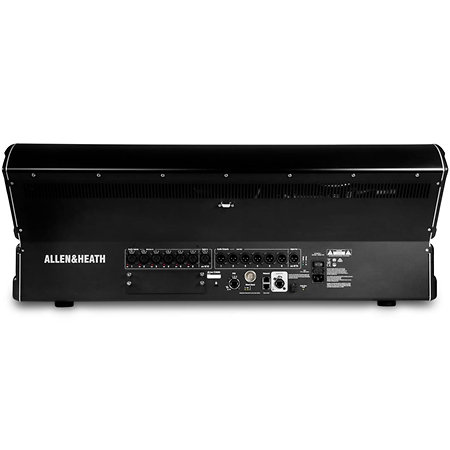

Step into the world of digital mixing with our Allen & Heath dLive C3500 Mixing Surface hire. As the largest C-Class control surface for the dLive MixRack system, the C3500 combined with our CDM48 Digital Mix Rack Stage Box delivers powerful processing capabilities, high audio quality, and an easy-to-follow workflow. Featuring dual 12-inch touchscreens and 24 faders across 6 layers, it provides good tactile control and visual feedback. Whether you’re managing a major concert, a large corporate event, broadcast production, or a complex theatrical show, the dLive C3500 is engineered to make even the most sophisticated mixing challenges feel simpler.
This control surface seamlessly integrates with a dLive MixRack (which provides the audio inputs/outputs and DSP processing – often hired separately or as part of a system), leveraging Allen & Heath’s powerful XCVI Core and DEEP processing suite for exceptional sound.
For a complete high-end digital audio solution, consider pairing the C3500 with our Allen & Heath dLive CDM48 Digital MixRack hire for comprehensive I/O. Enhance your control further with our iPad & Wi-Fi router hire for remote mixing capabilities.
Key Features & Benefits to Hire Dlive mixer:
- Dual 12″ Touchscreens: Two responsive multi-touch screens offer intuitive pinch, swipe, and drag ‘n’ drop gesture control, providing immediate access to channel processing, such as meters, FX, I/O, and scene management.
- 24 Faders / 6 Layers (144 Fader Strips): A comprehensive layout with 24 motorised faders, each configurable across 6 layers, allowing for up to 144 assignable fader strips to manage vast input counts and mixes.
- Harmony User Interface: Integrates screen and wrap-around rotary controls with RGB illumination, offering a fast and transparent workflow that keeps your focus on the mix.
- DEEP Processing Ready: Fully compatible with dLive’s DEEP processing architecture, which includes powerful emulations of compressors, EQs, and other FX directly within the console’s DSP, without consuming FX slots.
- Comprehensive Onboard I/O: Features 6 XLR mic/line inputs, 6 XLR line outputs, and AES3 digital stereo I/O, providing essential local connections.
- Flexible I/O & Networking: Includes GigaACE gigabit link to MixRack, DX link for I/O expansion (up to 2 DX32 expanders can be connected to a surface), 1 I/O Port for 128ch 96kHz option cards (e.g., Dante 128×128, Waves SG, MADI, fibreACE), 2 network ports, and Wordclock BNC I/O.
- USB Stereo Recording & Playback: Convenient 2-track recording and playback via USB, therefore the ability to capture the performances easily.
- Customisable Workflow: Fully assignable layout, configurable widget areas for scenes, meters, FX, and 19 assignable SoftKeys, allowing engineers to tailor the surface to their exact preferences.
- Built for Professionals: Rugged, high-grade metal construction ensures durability and reliability for demanding touring and installation environments.
Why Hire the Allen & Heath dLive C3500 Mixing Surface from Us?
When you choose The Rock Factory Limited for your Allen & Heath dLive C3500 hire, you are selecting a near-new control surface designed for high-stakes productions. This hire dLive mixing console is the heart of a powerful dLive system. It offers a workflow and sonic quality trusted by leading audio professionals worldwide. Renting from us provides the flexibility to access this premium mixing technology without the significant capital investment, perfect for tours, large festivals, corporate events, and theatre runs. We can provide expert advice and dedicated support to ensure your dLive system performs as intended.
Technical Specifications Overview:
| Feature | Detail |
|---|---|
| Console Type | dLive C Class Control Surface |
| Faders | 24 x 100mm Motorised Faders |
| Layers | 6 Layers (up to 144 assignable fader strips) |
| Touchscreens | 2 x 12″ Capacitive Touchscreens (Harmony UI) |
| Local Analog I/O | 6 x XLR Mic/Line Inputs (with +48V Phantom, -20dB Pad), 6 x XLR Line Outputs |
| Local Digital I/O | 1 x AES3 Stereo In (with SRC), 1 x AES3 Stereo Out (with SRC) |
| DSP Core | Controls external dLive MixRack (XCVI Core: 160×64 channels at 96kHz) |
| Internal FX | Access to MixRack’s 16 RackExtra FX engines & DEEP processing |
| USB Audio | Stereo recording and playback (2x Type A USB ports) |
| Network Ports | 2 x Network ports (for control) |
| dLive System Link | GigaACE gigabit link to MixRack, DX link for I/O expansion |
| I/O Port Slot | 1 x 128ch 96kHz expansion slot (for optional cards like Dante, Waves, MADI) |
| Wordclock | BNC In/Out |
| Other Controls | 19 assignable SoftKeys, 3 pages of 6 assignable rotaries |
| Dimensions (WxHxD) | 885 x 325 x 665 mm (34.8 x 12.8 x 26.2 in) |
| Weight | 28 kg (61.7 lbs) |
| Power Requirements | 100-240V AC, 50-60Hz, 110W max |
Manufacturer Resources
For detailed technical specifications and user guides on the Allen & Heath dLive C3500:
- Allen & Heath dLive C3500 Product Page: dLive C3500 – Allen & Heath
- dLive C Surface Getting Started Guide (PDF): dLive C Surface Getting Started Guide (Note: This link is to the C3500 datasheet, which often includes a getting started guide or links to resources.)
Video Introduction to the DLive C Class surfaces (which the C3500 hire dlive mixer console is):
Here is a helpful video that introduces the Dlive mixing control surface from Full Compass on You tube…
Contact Us
Ready to Hire Dlive Mixer and Command Your Sound?
Contact us today for competitive hire rates and availability for the Allen & Heath dLive C3500 mixing surface. Our expert team is ready to discuss your production needs and help you achieve flawless audio control for your next major event.
- Call Us: +64 21 358 577
